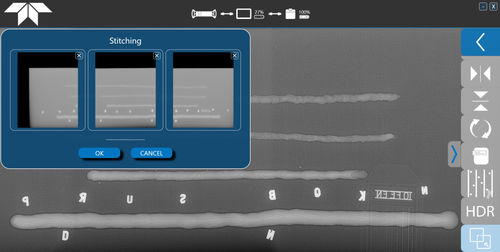

Image management software Sherlock NDT

measurementacquisitionreal-time

TOUCHSCREEN SOFTWARE FOR ON-THE-FIELD NDT DR INSPECTIONS Sherlock NDT is the perfect link between Teledyne ICM best in class portable X-ray generator, the CPSERIES, and our high-resolution digital radiography detectors, the Go-Scan SERIES. Developed by and with NDT DR specialists, this intuitive and user-friendly touchscreen software produces high-quality images, allows real-time (video) acquisition, and comes with many different enhancement features. Allowing compliance with most inspection quality standards, Sherlock NDT offers the control and adjustment in real-time of both the generators (CPSERIES and CPBattery) and the detector (Go-Scan SERIES), which guide and assist the NDT operators through all the inspection process and help him to reach the best quality image possible. All-in-one Allow control of the CPSERIES and CPBettery Generators Integrated with Go-Scan detectors Study management Exposure/integration time calculator Hardware interconnexion status Real-time Image acquisition Diconde compliant Detector settings Calibration Pixel map edition Image processing/editing ADRC dynamic filter Local contrast enhancement Teledyne filter Histogram equalization Emboss Black&White Pseudocolors Annotation/Highlight Zoom in/out Drag&drop external images from Windows into the image editor Export/Save/Import Image qualification SNR Greyscale value iSRb / Automatic IQI recognition Application features Automatic wall thickness measurement tool Automatic file export Line profile measurement
