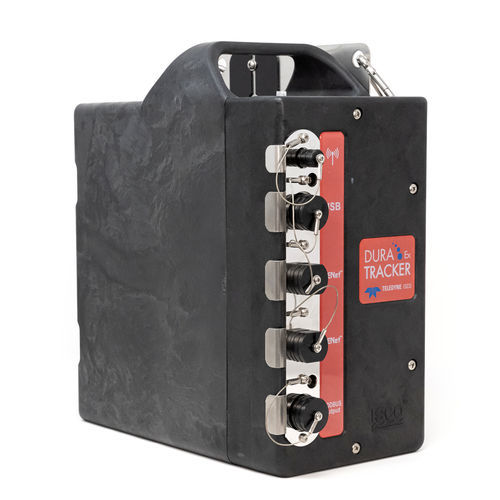

Area-velocity flowmeter DuraTracker Ex

Doppler ultrasonicvolumeModbus

The DuraTracker Ex flowmeter is the most efficient and reliable flow measurement solution on the market today for a wide range of open channel flow applications. It supports flow measurement technologies including non-contact laser area velocity, submerged Doppler area velocity, and ultrasonic. The flowmeter calculates flow using standard open channel level-to-flow and area velocity conversions, user defined equations, level-to-area data points, or level-to-flow data points. The DuraTracker Ex package cost-effectively integrates cellular communications and multiple flow technologies within a single module. The standard Bluetooth capabilities make the programming, sensor calibration, and data retrieval job easy through wireless devices. A remote cell phone communication option is also available. Applications: Collection system flow monitoring Industrial pretreatment flow monitoring Waste Water Treatment Plant flow ​measurement​​ Standard Features: Class 1, Div I, Zone 0, ATEX category 1​G approval Rugged, submersible enclosure meets IP68 environmental specs Compatible with off-the-shelf batteries​ Variable data-rate storage Replaceable high-capacity internal desiccant cartridge and Gortex filter protect sensor air reference port from water entry and internal moisture MODBUS output USB interface Bluetooth communication interface with wireless devices Quick connect plug-and-play multiple sensors connectivity: Ultrasonic, AV, and laser​​​
