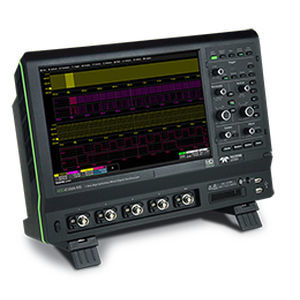

Digital oscilloscope HDO4000A series

analogbench-top4-channel

HDO4000A oscilloscopes have 4 analog input channels, 12-bit resolution using Teledyne LeCroy’s HD4096 high definition technology, up to 1 GHz of bandwidth and a compact form factor with a large 12.1” multi-touch display. They are ideal for debug and troubleshooting of power electronics designs, digital power management or power integrity analysis, automotive electronics systems, and deeply embedded or mechatronic designs. Key Features •4 input channels •16 digital channels (with –MS models) •12-bit ADC resolution, up to 15 bits with enhanced resolution •Up to 10 GS/s with Enhanced Sample Rate •200 MHz, 350 MHz, 500 MHz, and 1 GHz bandwidths •±10 V applied offset with high gain settings •Long Memory - up to 50 Mpts/Ch •MAUI with OneTouch user interface •Exceptional Serial Data Tools •Powerful, Deep Toolbox HD4096 High Definition Technology Enables capture and display of signals with 16 times more resolution than other oscilloscopes. Waveforms captured and displayed are cleaner and crisper. Signal details often lost in the noise on other oscilloscopes are clearly visible and easy to distinguish with HD4096. HD4096 enables oscilloscopes to deliver unmatched measurement precision for improved debug and analysis. Huge Applied Offset Range A 16-bit offset DAC permits ±10 V offset at 20 mV/div, ±4 V at 5 mV/div, and an amazing ±1.6 V offset at the highest sensitivity (1 mV/div). Such large applied offsets (combined with 12 bits) make it easy to acquire and view small signal variations (e.g. ripple, noise, transient interference) on DC or sensor signals. They also provide extended offset ranges for many of Teledyne LeCroy’s high voltage probes.
