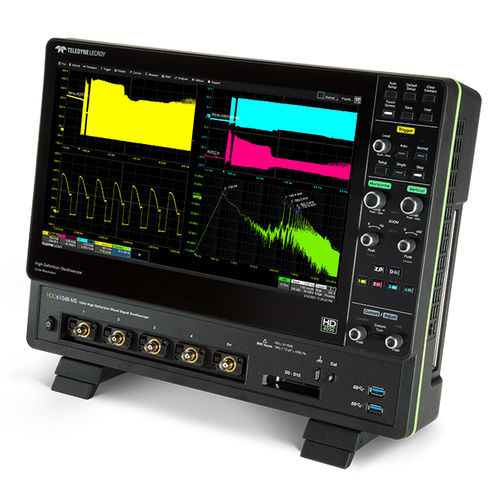

Digital oscilloscope HDO6000B

analogbench-top4-channel

•4 channels, 1 GHz, 250 Mpts •12 bits all the time Highest Resolution HD4096 technology enables 12 bits of vertical resolution with 1 GHz bandwidth •Clean, Crisp Waveforms •More Signal Details •Unmatched Measurement Precision Bigger display Capture every detail with a bigger 15.6" display •1920x1080 Full HD resolution •Sleekest instrument, smallest footprint •New design, most bench space More Capability Increase productivity with specialized tools •MAUI Studio •Spectrum Analysis •QualiPHY Compliance Testing Today’s highly complex power-conversion systems and embedded control systems are becoming smaller and denser, with more sensor inputs and lower-voltage power rails than ever. HDO6000B's combination of 12-bit resolution at 1 GHz bandwidth and a competitive software toolset makes it ideal for these key applications. 1-15.6" 1920 x 1080 capacitive touchscreen display 2-4 analog input channels 3-ProBus input supports every Teledyne LeCroy probe 4-MAUI with OneTouch user interface for intuitive and efficient operation 5-Q-Scape multi-tab display architecture 6-Up to 250 Mpts of acquisition memory 7-HD4096 technology - 12 bits all the time 8-Buttons/indicators color-coded to associated waveform on display 9-Use cursors and adjust settings without opening a menu 10-Mixed Signal capability with 16 integrated digital channels 11-6 USB 3.1 ports (2 front, 4 side)
