Analog oscilloscope T3DSO3000 series

bench-top4-channelhigh-definition

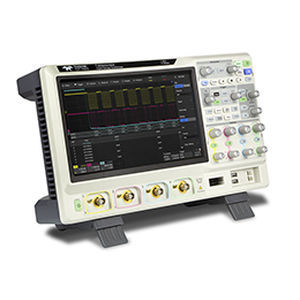

Teledyne Test Tools new T3DSO3000 Oscilloscopes feature four channel models with analog bandwidth options from 200 MHz to 1 GHz. Each model offers a maximum sample rate of 5 GSa/s, and a maximum memory depth of 250 Mpts in half channel mode. All models incorporate two 5 GSa/s ADCs and two 250 Mpts memory modules. When all channels are enabled, each channel has sample rate of 2.5 GSa/s and a standard record length of 125 Mpts. When only a single channel per ADC is active, the maximum sample rate is 5 GSa/s and the maximum record length is 250 Mpts. For ease-of-use, the most used functions can be accessed with its user-friendly front panel design. Key Features •200 MHz, 350 MHz, 500 MHz & 1 GHz bandwidths. •Sample rates up to 5 GS/s. •Long Memory – up to 125 Mpts/Ch (250 Mpts interleaved). •10.1" capacitive color TFT-LCD touch screen (1024 x 600). •Includes Serial Bus Decoders for I2 C, SPI, UART, CAN, LIN, CAN FD, I2 S, MIL-STD-1553B, FlexRay, SENT & Manchester. •Includes Bode Plot from 10 Hz to 25 MHz using the T3DSO1000–FGMOD–A function/arbitrary waveform generator or Bode Plot measurements from 10 Hz to 120 MHz using the T3AFG120 arbitrary function generator. •Power Analysis application included as standard, measuring power quality, current harmonics, inrush current, switching loss, slew rate, modulation, output ripple, turn on/turn off, transient response, PSRR, efficiency. •Optional MSO – 16 Digital Channels. This adds mixed signal debugging to the T3DSO3000 Oscilloscope series. •Optional 25 MHz function/arbitrary waveform generator. 6 waveform types (Sine, Square, Ramp, Pulse, DC, Noise) and 45 Arbitrary waveforms. (Option T3DSO1000–FGMOD–A)
