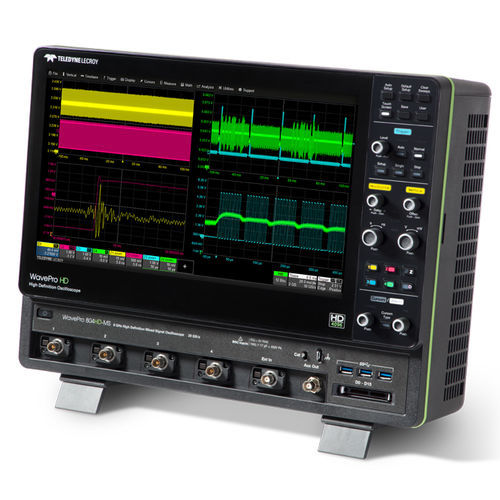

Digital oscilloscope WavePro HD series

analogbench-top4-channel

WavePro HD High-Definition oscilloscopes employ unique Teledyne LeCroy HD4096 technology to achieve 12-bit resolution at up to 8 GHz bandwidth, for the lowest noise and unmatched signal fidelity. Up to 5 Gpt of highly responsive acquisition memory gives more visibility into system behavior, and the exceptional analysis toolbox enables deep insight. Key Features •HD4096 technology provides 12-bit resolution up to 8 GHz and 20 GS/s •Up to 5 Gpts of acquisition memory enables detailed viewing of long events •15.6" 1900 x 1080 Full HD capacitive touchscreen •New ProBus2 input supports up to 8 GHz bandwidth and direct compatibility with a wide variety of existing ProBus probes - 50Ω and 1MΩ coupling modes support all input types on a single connector •MAUI with OneTouch user interface for intuitive and efficient operation •Deep toolbox enables and simplifies complex analysis •Intuitive navigation to quickly find important features in long waveforms HD4096 High Definition Technology Next-generation Teledyne LeCroy HD4096 technology enables capture and display of signals with 16 times more resolution than other oscilloscopes, up to 8 GHz bandwidth and 20 GS/s sample rate. Waveforms captured and displayed are cleaner and crisper. Signal details often lost in the noise on other oscilloscopes are clearly visible and easy to distinguish with HD4096. HD4096 enables oscilloscopes to deliver unmatched measurement precision for improved debug and analysis. High-resolution performance comes with no special operating modes or compromises on bandwidth or sample rate.
