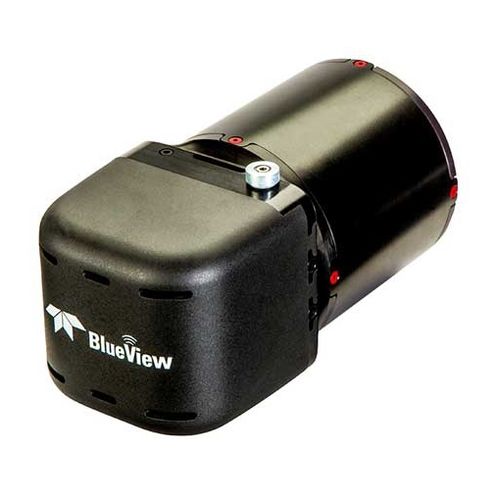

Imaging sonar M900 series

End-of-Sale BlueView M900 Series -2D Multibeam Imaging Sonars Streaming video-like sonar imagery Continuous situational awareness Multiple field-of-view options Depth rated to 1,000 m (3,280 ft.), 4,000 m (13,123 ft.) and 6,000 m (19,685 ft.) Plug & Go operation Intuitive Windows® based software Software Development Kit available 'S3' electronics 30% lighter, smaller, faster and less power then P Series Automatically adjust transmit power level to improve imagery up close and at long ranges UDP broadcast modes Built in hardware triggering options Expanded area coverage High-resolution imagery Unaffected by motion Easy automation of nav-control systems The industry's most compact, full featured 2D Multibeam Imaging Sonar available. Engineered to fit in small, tight spaces the M Series is 30% smaller than the popular P Series, and delivers the same crisp, real-time sonar imagery. Ethernet communication is standard VDSL Optional; VDSL version can be operated via Ethernet or VDSL VDSL (Very-high-bit-rate Digital Subscriber Line) provides customers with the capability to transmit sonar communication over single twisted pair copper wires up to 1500ft* of cable BlueView’s latest VDSL solutions employ Broadband over Power (BPL) technologies that provide longer ranges, higher bandwidths, faster startup, and lower power ​​​​​​Voltage: 12 - 48 VDC​
