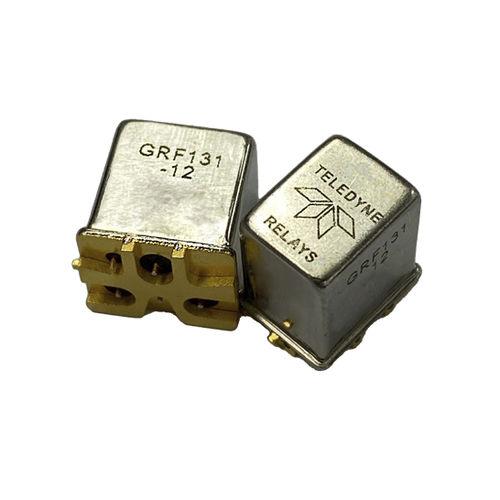

RF electromechanical relay GRF131 series

12 Vdc5 VDCSPDT

Extended-Centigrid hermetically sealed package, through-hole mounted, magnetic-latching SPDT, with grounded contacts The ultraminiature Series GRF131 is designed to provide a practical surface-mount switchingsolution with RF performance and repeatability to 18GHz. The GRF131 improves on Teledyne Relays’ heritage of miniature RF relays by incorporating a precision transmission line structure in the internal construction of the contact system. GRF131 relays feature a unique ground shield to facilitate surface mounting and to extend the frequency range when compared to through-hole solutions. These relays are designed for use in RF attenuators, RF switch matrices, high frequency spreadspectrum radios, ATE, and other applications that require dependable high frequency signal fidelity and performance. The low power consumption makes the GRF131 suitable for applications where power budget is restricted. • High Repeatability • Wide Bandwidth Performance • Higher Isolation Between Each Signal Path • Metal Enclosure for EMI Shielding • High Isolation Between Control and Signal Paths • High Resistance to ESD The unique construction features and manufacturing techniques provide excellent robustness forenvironmental extremes and overall reliability: • Minimum mass components and welded construction provide maximum resistance to shock and vibration • Advanced cleaning techniques provide maximum assurance of internal cleanliness • Gold-plated precious metal alloy contacts ensure reliable switching • Hermetic Seal • RoHS Compliant
