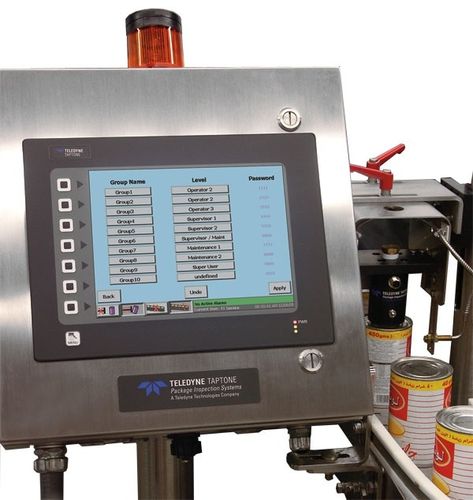

Fill level inspection system 2,000 containers/min , 12 VDC | T4000

for leak detection

Proximity Technology Proximity technology measures pressure or vacuum in containers with metal closures by measuring the lid deflection. The sensor produces a continuous magnetic field that monitors the distance between the sensor and the metal lid. The continuous signal is digitally sampled to produce a merit value of the lid profile. The profile value is then compared to user set limits. Containers with lid deflection outside these limits are rejected. Available with conveyor mount or on an adjustable, floor mounted RTV pole This sensor requires a User Interface for operation. The proximity sensor is compatible with the T100, T550, T4000 HMI, T4000 PC, and PRO Series user interfaces.
