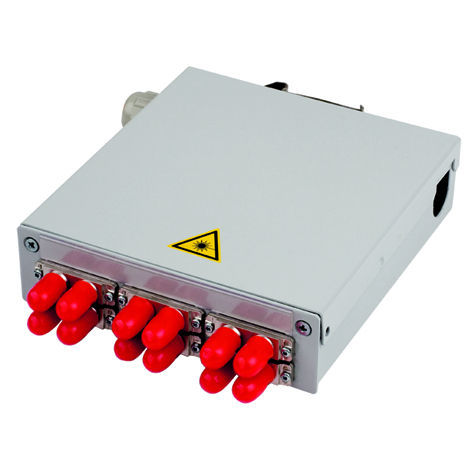

STX mounting rail distributor with 6xST Duplex adaptors, Multimode; metal sleeve/metal housing
Article name - FO-Di DinR distr 6 STD MM nPT
Schutzart - IP20
Housing - STX mounting rail distributor
Adaptors - 6xST Duplex, phosphor bronze sleeve/metal housing
Type - Multimode
For generic cabling in control cabinets, Telegärtner offers outlets and distributors which can be mounted directly next to one another on the mounting rail. They form the ideal connection between the arriving installation lines and the wiring inside the control cabinet. The components can be quickly and easily mounted on conventional TH 35 rails by simply clicking them in place.
For up to 24 fibers
3 individual cable inputs (top / bottom / rear)
Rail mounting in 3 different possible positions
Dimensions in mm (1 HU): width - 35 / 70
Cable entry - cable gland M20 for 5-9 mm
Panel piercings - ST Duplex, SC Duplex, LC Duplex, E2000 Compact
Dimensions in mm: Heigth - 125
Dimensions in mm: Depth - 140
Material: housing - sheet steel zinc plated, powder coated, light grey RAL 7035
Material: front plate - sheet steel zinc plated, powder coated, light grey RAL 7035
Material: top hat rail adaptor
