Data connector 100023965

RFjackstraight

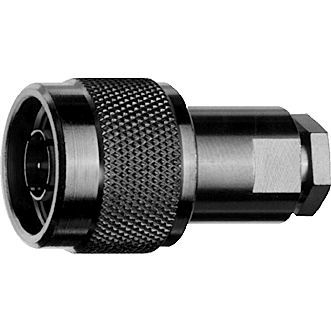

N Straight Plug G3 (RG-178B/U) solder/clamp IP 67 Article name - N Plg str sd/cl G3 Cable group; cable - G3 (RG-178B/U) KX 21A RG-178B/U RG-196A/U Remarks - solder/clamp; pressure sleeve IP67 Assembly - B02 The N series is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. Only 50 Ω impedances are available. Connector styles are available for flexible, conformable, semi-rigid and corrugated cable types. Both crimp and clamp cable termination processes are used for this series. Special design techniques for this series of connectors have resulted in excellent levels of performance with regard go return loss (VSWR) and intermodulation distortion. Applications for these connectors vary from signal and data transmission where vibration resistance and environmental protection is required. N series provides a medium-power high-frequency solution for coax connections. Mating face sealing for N connectors between plug and jack (mated) according to IP 68. The classifications are general statements for the relevant series. Individual connectors may deviate from the values shown. If in doubt, please consult our engineers. Recommended coupling torque - 4 - 6 Nm Durability (Matings) - ≥ 500 Material: spring contacts - CuBe2, CuNi1Pb1P(C97) Material: outer conductor - CuZn39Pb3 Material: other metal parts - CuZn39Pb3 Material: insulators - PTFE Material: gaskets - Silicone, NBR Finish: Inner conductor - Cu2Ag5 Finish: Outer conductor - CuSnZn3 (Telealloy); Ag2CuSnZn0.5 (Optargen) Finish: Other metal parts - CuSnZn3 (Telealloy), Cu2Ni5
