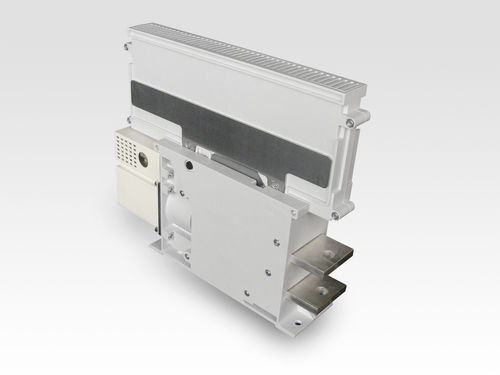

Power contactor 2 - 4 kV, 1 000 A | CGC series

electromagneticDCAC

The new CGC series of Telema contactors is native for typical railways environment. Strong and continuous vibrations, heavy duty cycles, limited space available and extended temperature range are just some of the peculiarities that have been taken into account in the design of this product family. The result is a very thin component (only 80 mm), i.e. the absolute best in class for similar electrical performances. According to Telema mission “Global experience, local content”, this new series of contactors can be produced everywhere among Telema group facilities all over the world, according to specific localisation requirements of every project. Can be used for both AC and DC current (self-supplied magnetic arc blow-out). The main applications of CGC contactors are: DC -link isolation Traction converter input control Propulsion system configuration
