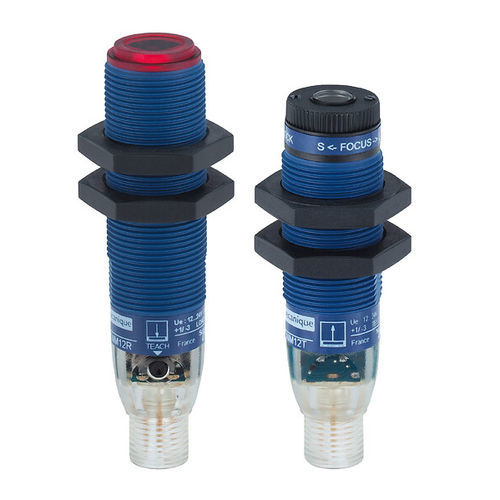

Through-beam photoelectric sensor XUBLANCNM12

cylindricallaser

XU, XUB, thru beam, laser, Sn 100 m, 12...24 VDC, M12 Main Range of product Telemecanique Photoelectric sensors XU Series name Application material handling Electronic sensor type Photo-electric sensor Sensor name XUB Sensor design Cylindrical M18 Detection system Thru beam Material Plastic Type of output signal Discrete Supply circuit type DC Wiring technique 3-wire Discrete output type NPN Discrete output function 1 NO or 1 NC programmable Electrical connection 1 male connector M12 Complementary Enclosure material PBT Lens material PMMA Output type Solid state Status LED - [Us] rated supply voltage - Switching capacity in mA - Voltage drop <1.5 V (closed state) Current consumption 25 mA no-load Maximum power consumption in W - Delay first up 80.0000 MILLISECOND Delay response 0.4000 MILLISECOND Setting-up With sensitivity adjustment Delay recovery - Kit composition Transmitter + receiver XUBLAKCNM12T + XUBLANCNM12R Environment Vibration resistance 7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 Packing Units Unit type of package 1 PCE Number of units in package 1 1 Package 1 height 3.6000 CENTIMETER Package 1 width 7.0000 CENTIMETER Package 1 length 13.0000 CENTIMETER Package 1 weight 61.0000 GRAM Unit type of package 2 S01 Number of units in package 2 15 Package 2 height 15.0000 CENTIMETER Package 2 width 15.0000 CENTIMETER Package 2 length 40.0000 CENTIMETER Package 2 weight 1.1320 KILOGRAM
