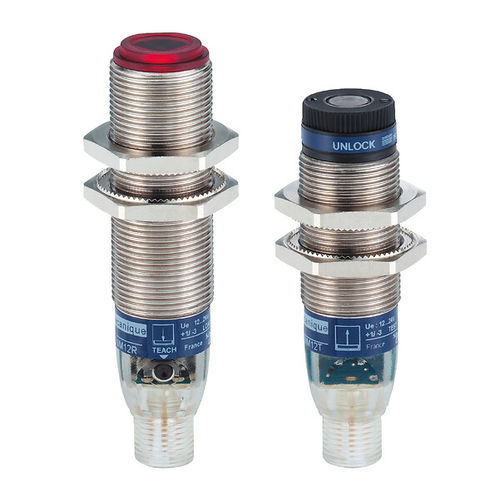

Through-beam photoelectric sensor XUBLBNCNM12

cylindricallaser

sensors XU, XUB, thru beam, laser, Sn 100 m, 12...24 VDC, M12 Range of product Telemecanique Photoelectric sensors XU Series name Application material handling Electronic sensor type Photo-electric sensor Sensor name XUB Sensor design Cylindrical M18 Detection system Thru beam Material Metal Type of output signal Discrete Supply circuit type DC Wiring technique 3-wire Discrete output type NPN Discrete output function 1 NO or 1 NC programmable Electrical connection 1 male connector M12 Emission - Complementary Enclosure material Nickel plated brass Lens material PMMA Output type Solid state Status LED - [Us] rated supply voltage - Switching capacity in mA - Voltage drop <1.5 V (closed state) Current consumption 25 mA no-load Maximum power consumption in W - Delay first up 80.0000 MILLISECOND Delay response 0.4000 MILLISECOND Setting-up With sensitivity adjustment Delay recovery - Kit composition Transmitter + receiver XUBLBKCNM12T + XUBLBNCNM12R Environment Vibration resistance 7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 IP degree of protection -
