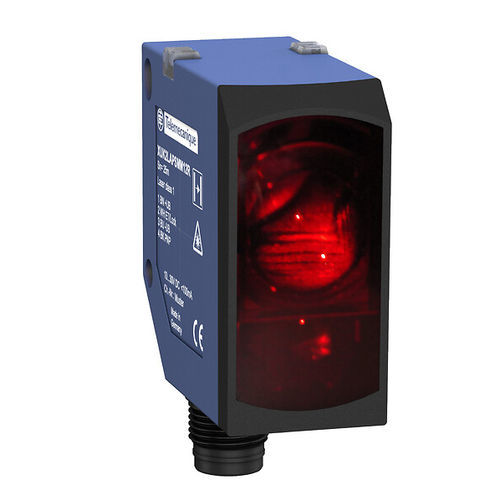

Through-beam photoelectric sensor XUK2LAKSMM12T

with background suppressionrectangularlaser

XU, photo electric laser sensor, XUK, thru beam transmitter, Sn 30 m -10...30 VDC, M12 Main Series name Application material handling Electronic sensor type Photo-electric sensor Sensor name XUK Sensor design Compact 50 x 50 Detection system Thru beam Material Plastic Type of output signal Discrete Supply circuit type DC Wiring technique 4-wire Electrical connection 1 male connector M12, 4 pins Product specific application Not applicable Emission - Complementary Enclosure material ABS/PC Lens material PMMA Add on output Without Status LED - Add on input Test [Us] rated supply voltage - Maximum voltage drop - Current consumption <= 30 mA no-load Environment Vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 Product certifications Ecolab Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60947-5-2 IP degree of protection -
