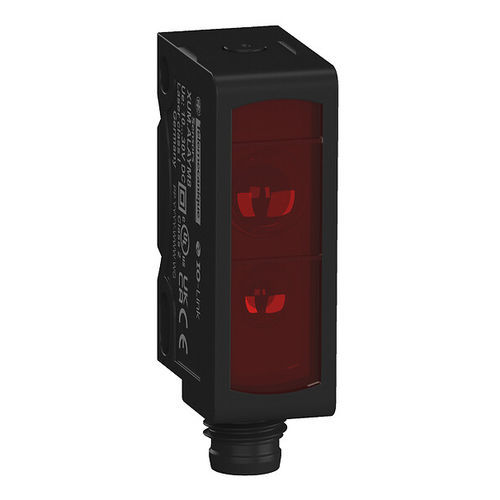

Diffuse photoelectric sensor XUM5ALAYM8

rectangularlaser

XUM5, Diffuse, Laser, Sn 250mm, IO-Link, Connetor M8 Main Range of product Telemecanique Photoelectric sensors XU Series name Application packaging Electronic sensor type Photo-electric sensor Sensor name XUM Sensor design Miniature Detection system Diffuse Material Plastic Type of output signal Discrete Supply circuit type DC Discrete output type IOLINK Discrete output function 1 NO or 1 NC programmable Electrical connection 1 male connector M8, 4 pins Product specific application Diffuse laser Emission - Complementary Enclosure material ABS Lens material PMMA Output type Solid state Add on output Without, 100 mA Status LED - [Us] rated supply voltage - Switching capacity in mA - Current consumption <= 30 mA no-load Delay first up 300.0000 MILLISECOND Delay response 125.0000 MICROSECOND Setting-up Sensitivity adjustment with teach mode Delay recovery - Environment IP degree of protection - Packing Units Unit type of package 1 PCE Number of units in package 1 1 Package 1 height 9.1000 CENTIMETER Package 1 width 3.1000 CENTIMETER Package 1 length 6.1000 CENTIMETER Package 1 weight 26.0000 GRAM Unit type of package 2 S01 Number of units in package 2 20 Package 2 height 15.0000 CENTIMETER Package 2 width 15.0000 CENTIMETER Package 2 length 40.0000 CENTIMETER Package 2 weight 980.0000 GRAM
