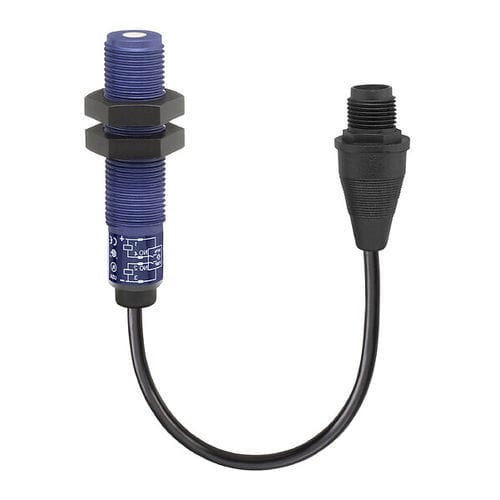

Ultrasonic sensor SC380A400

Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC Main Range of product Hyde Park Sensor type Ultrasonic sensor Series name Superprox + Sensor design Cylindrical M12 Material Plastic Type of output signal Discrete Type of sensing window Configurable Wiring technique 4-wire [Us] rated supply voltage 12...24 V DC with overload and short-circuit protection ISO thread M12 x 1 Electrical connection Remote male connector M12 4 pins, 152 mm cable length Product specific application Discrete proximity Enclosure material ULTEM Front material Glass epoxy Complementary Minimum size of detected object Cylinder diameter 2.5 mm - up to 1 mm sensing distance Current consumption 25 mA Environment IP degree of protection IP67 Marking CE Product certifications UL NEMA degree of protection NEMA 4X (indoor use only) Vibration resistance +/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) Shock resistance 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 Packing Units Unit type of package 1 PCE Number of units in package 1 1 Package 1 height 8.4150 CENTIMETER Package 1 width 3.8100 CENTIMETER Package 1 length 8.4150 CENTIMETER Package 1 weight 362.8740 GRAM
