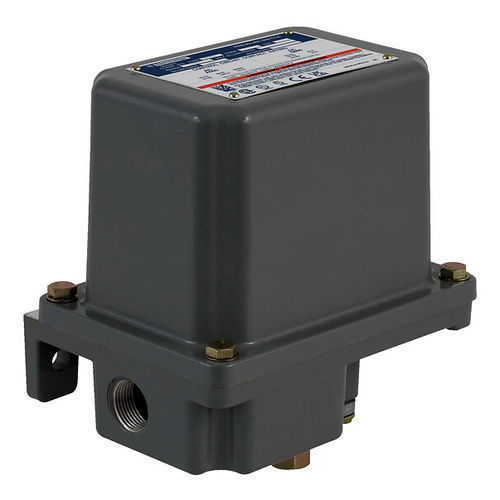

Electromechanical pressure switch 9012GAR24

diaphragmNONC

Main Range of product 9012G Pressure sensor type Electromechanical pressure switch Pressure sensor name 9012G Maximum pressure 240 psi Contacts type and composition 2(NC-NO), DPDT-DB, Form ZZ, snap action, silver nickel contacts Fluid connection type 0.25 inch 18 NPTF conforming to UL 508 Pressure switch type of operation Regulation between 2 thresholds Scale type Adjustable differential Local display Without Complementary Cable entry 0.5 inch NPT conduit entrance Terminal block type 8 screw terminals Electrical connection Screw-clamp terminals, AWG 22...AWG 12 Electrical circuit type Control circuit Local signalling Without: Setting Internal Enclosure material Cast aluminium Pressure actuator Diaphragm nitrile (Buna-N) Operating position Any position Materials in contact with fluid Ethylene propylene Operating rate 120 cyc/mn Environment Vibration resistance 2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 Shock resistance 50 gn conforming to IEC 58-2-27 Standards UL 508 Product certifications CSA LR26817 class 3218 02 NEMA degree of protection NEMA 7/9 conforming to UL 698
