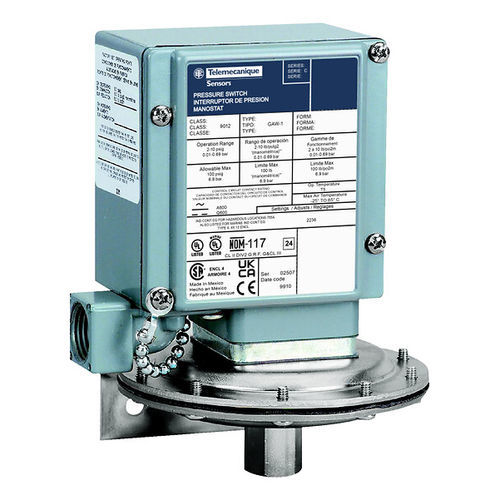

Electromechanical pressure switch 9012GAW1

diaphragmNONC

Pressure sensor type Electromechanical pressure switch Pressure sensor name 9012G Contacts type and composition NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts Fluid connection type 0.25 inch 18 NPTF conforming to UL 508 Pressure switch type of operation Regulation between 2 thresholds Scale type Adjustable differential Local display Without Complementary Cable entry 0.5 inch NPT conduit entrance Terminal block type 4 screw terminals Electrical connection Screw-clamp terminals, AWG 22...AWG 12 Electrical circuit type Control circuit Local signalling Without: Setting Internal Enclosure material Die cast aluminium alloy 380 Pressure actuator Diaphragm nitrile (Buna-N) Operating position Any position Materials in contact with fluid Nitrile (Buna-N) Operating rate 120 cyc/mn Environment Vibration resistance 2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 Shock resistance 50 gn conforming to IEC 58-2-27 Standards UL 508 Product certifications UL listed NEMA degree of protection NEMA 4/4X/13 conforming to UL 50 Packing Units Unit type of package 1 PCE Number of units in package 1 1 Package 1 height 15.2400 CENTIMETER Package 1 width 18.5420 CENTIMETER Package 1 length 19.8120 CENTIMETER Package 1 weight 2.0050 KILOGRAM
