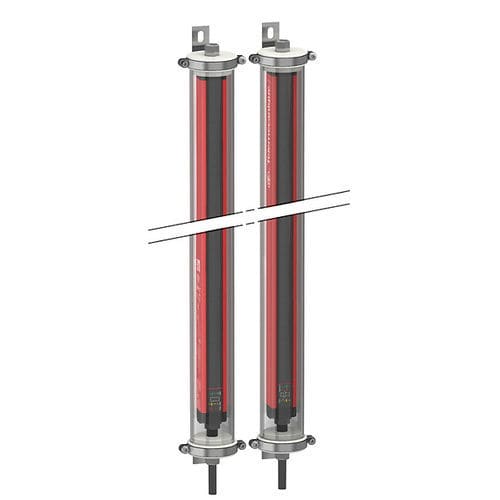

Safety light curtain XUSL2E30H046NWC

multibeamthrough-beamIP69K

Safety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL IP69K Hand protection w/o Heating, Std range, Hp = 460 mm, R=30 mm Main Range of product Telemecanique Safety light curtains XUSL Product or component type Safety light curtain type 2 Device short name XUSL2E Output type 2 safety outputs OSSD solid-state PNP (arc suppression) Product specific application For hand protection Type of start Manual Control type Selected by wiring Complementary Detection system Transmitter-receiver system Response time 8 ms Kit composition adjustable mounting bracket(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, silicone o-ring(s), 1 PVC cable(s) Emission IR LED 950 nm [Us] rated supply voltage 24 V DC +/- 20 % Supply Power supply conforming to IEC 61496-1, power supply conforming to IEC 60204-1 Current consumption 42 mA no-load transmitter, 83 mA no-load receiver, 42 mA transmitter, 900 mA with maximum load receiver Output voltage 24 V Output circuit type DC Voltage drop <0.5 V Local signalling 1 multi-colour LED transmitter, 2 dual colour LEDs receiver Electrical connection 1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver Type of cable Unshielded cable AWG 22 10-10 m Function available Test, muting through external safety module XPSLCMUT1160, LED display of operating modes and faults, anti-condensation system Marking CE Material PMMA (polymethyl methacrylate): tube, stainless steel AISI 316L: sealing plug, PVC (polyvinyl chloride): cable Housing colour Red RAL 3000 Fixing mode By fixing brackets Offer type Standard distance Provided equipment Without heating system
