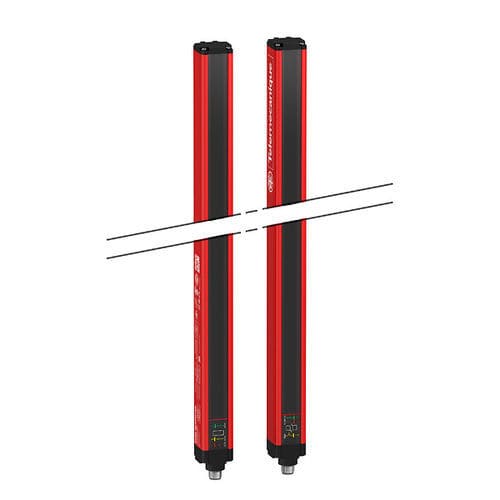

Safety light curtain XUSL2E2BB051N

multibeamthrough-beambody protection

Safety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL For body protection, Beams, Hp = 510 mm Main Range of product Telemecanique Safety light curtains XUSL Product or component type Safety light curtain type 2 Device short name XUSL2E Output type 2 safety outputs OSSD solid-state PNP (arc suppression) Product specific application For body protection Type of start Manual Control type Selected by wiring Complementary Detection system Transmitter-receiver system Response time 3 ms Kit composition adjustable mounting bracket(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM Emission IR LED 950 nm [Us] rated supply voltage 24 V DC +/- 20 % Supply Power supply conforming to IEC 61496-1, power supply conforming to IEC 60204-1 Current consumption 42 mA no-load transmitter, 83 mA no-load receiver, 42 mA transmitter, 900 mA with maximum load receiver Output voltage 24 V Output circuit type DC Voltage drop <0.5 V Local signalling 1 multi-colour LED transmitter, 2 dual colour LEDs receiver Electrical connection 1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver Function available Test, muting through external safety module XPSLCMUT1160, LED display of operating modes and faults Marking CE Material Aluminium: casing, polycarbonate: front panel, polypropylene: end caps Housing colour Red RAL 3000 Fixing mode By fixing brackets Offer type Standard distance
