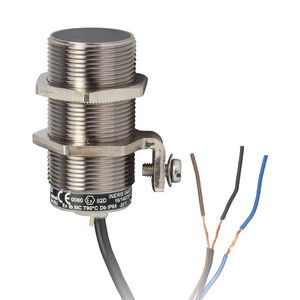

Inductive proximity sensor XS1M18AB120EX

cylindricalM18flush

Inductive proximity sensors XS for hazardous area dust, inductive sensor analog, M18, Sn5mm, 12...24 VDC, cable 2 m Main Range of product Telemecanique Inductive proximity sensors XS Series name Application Sensor type Inductive proximity sensor Sensor name XS1 Device application ATEX dust Sensor design Cylindrical M18 Size 18 mm Body type Fixed Type of output signal Analogue Wiring technique 2-wire Detector flush mounting acceptance Flush mountable Material Metal Analogue output range 4...20 mA Electrical connection Cable Output circuit type DC [Us] rated supply voltage 12...24 V DC IP degree of protection IP67 conforming to IEC 60529 Complementary Enclosure material Nickel plated brass Detection face Frontal Thread type M18 x 1 Front material PPS Sensing range > 4...8 mm Repeat accuracy <= 3% of Sr Cable composition 3 x 0.34 mm² Wire insulation material PVC Switching frequency <= 500 Hz Output current drift 10.0000 PERCENTAGE Current consumption 4 mA no-load Marking II2 D-Ex tb IIIC T90°C Db IP67
