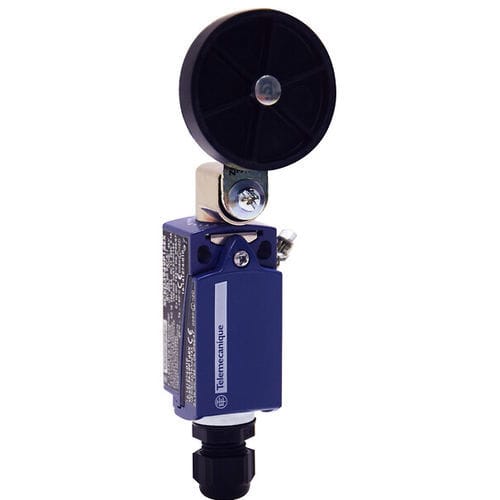

Rotary limit switch XCKD3939P16EX

ATEXIP66IP67

Limit switch, Limit switches XC Standard, XCKD, roller lever Ø 50 mm, 2NC + NO, ATEX/IECEx Main Range of product Telemecanique Limit switches XC Standard Series name Standard format Product or component type Limit switch Device short name XCKD Sensor design Compact Body type Fixed Head type Rotary head Material Metal Fixing mode By the body Movement of operating head Rotary Type of operator Spring return roller lever thermoplastic roller diameter 50 mm Switch actuation By 30° cam Type of approach Lateral approach, 2 directions Electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm² Contacts type and composition 2 NC + 1 NO Contacts insulation form Zb Contact operation Snap action Positive opening With IP degree of protection IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 Complementary Body material Zamak Head material Zamak Contact code designation B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN 60947-5-1, B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3 Marking II2 D-Ex tb IIIC T85°C Db IP66/67
