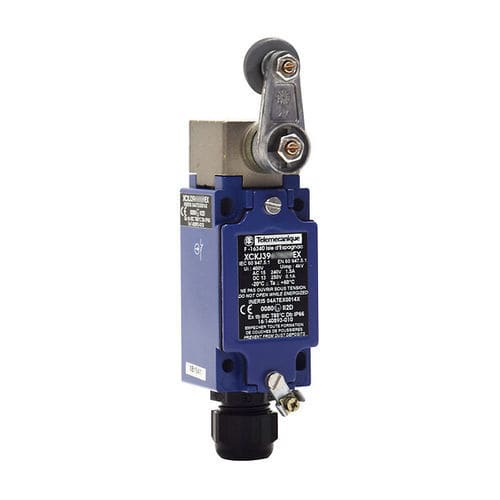

Rotary limit switch XCKJ390513H29EX

ATEXIP66standard

Limit switch, Limit switches XC Standard, XCKJ, roller lever, 2NC + NO, ATEX/IECEx Main Range of product Telemecanique Limit switches XC Standard Series name Standard format Product or component type Limit switch Device short name XCKJ Sensor design Form A conforming to CENELEC EN 50041 Body type Fixed Head type Rotary head Material Metal Fixing mode By the body Movement of operating head Rotary Type of operator Spring return roller lever steel Switch actuation By 30° cam Type of approach Lateral approach, 1 or 2 programmable direction Electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm² Contacts type and composition 2 NC + 1 NO Contacts insulation form Zb Contact operation Snap action Positive opening With IP degree of protection IP66 conforming to IEC 60529 Complementary Body material Zamak Head material Zamak Contact code designation B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3 Marking II2 D-Ex tb IIIC T85°C Db IP66/67 Environment Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27 Vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 Electrical shock protection class Class I conforming to IEC 61140, class I conforming to NF C 20-030 Protective treatment TC Dust zone Zone 21 - 22 Product certifications IEC-Ex INE 17.0020X Standards IEC 60079-0 Directives 2014/34/EU - ATEX directive
