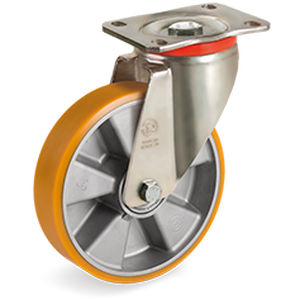

Swivel caster 65AL series

base plateheavy-dutyindustrial

Suitable for applications with medium/heavy-duty loads, also with mechanical handling, with speed up to 6 km/h. The excellent rolling resistance allows an easy handling of heavy loads even with wheels of small diameter. Examples of recommended applications: trolleys for indoor industrial handling, AGV trolleys, containers, electrical pallet trucks, tilt trucks. TECHNICAL FEATURES WHEEL TREAD: TR polyurethane tread; hardness 95 Shore A; excellent rolling resistance and elasticity, highly resistant to wear and to tearing CENTRE: aluminium BRACKETS: NL, M, P, EP, ENVIRONMENTS OF USE Designed for industrial environments, even in presence of alcohols, glycols, hydrocarbons. Not recommended in areas with organic acids and mineral acids, base solutions and saturated vapour. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors. Tile floor Tile floor - Asphalt floor Asphalt floor - Resin cement floor Resin cement floor - Not paved floor Not paved floor - Expanded metal floor Expanded metal floor - Floor with chips Floor with chips - Floor with obstacles Floor with obstacles FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.
