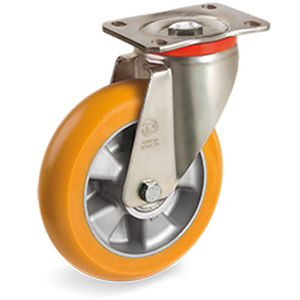

Swivel caster 65ER series
base platewith ergonomic profileindustrial

Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 2
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 3
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 4
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 5
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 6
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 7
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 8
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 9
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 10
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 11
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 12
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 13
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 14
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 15
Swivel caster - 65ER series - Tellure Rôta - base plate / with ergonomic profile / industrial - image - 16
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
with ergonomic profile, industrial, for trolleys, for materials handling, steel, polyurethane, aluminum, metal, resin
Load capacity

Min.: 450 kg
(992 lb)

Max.: 1,000 kg
(2,205 lb)

Wheel diameter

Min.: 125 mm
(4.921 in)

Max.: 250 mm
(9.843 in)

Description

The round profile reduces the start-up coefficient when the castors are positioned at 90° from the line of movement and therefore reduces the amount of effort required by the operators when handling trolleys.Combined with appropriate brackets they guarantee excellent performance for mechanical handling up to 12 km/h. Typical usage: automotive and lean industries. USAGE CONDITIONS Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable for all types of industrial floors, except unpaved; it easily overcomes obstacles. Tile floor Tile floor - Asphalt floor Asphalt floor - Resin cement floor Resin cement floor - Not paved floor Not paved floor - Expanded metal floor Expanded metal floor - Floor with chips Floor with chips - Floor with obstacles Floor with obstacles FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.
