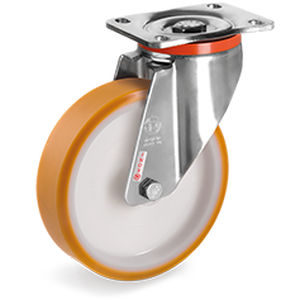

Swivel caster 66 series

base platefor trolleyshandling

Excellent for trolleys and machinery with medium/heavy-duty loads, also in presence of continuous handling. Also suitable for mechanical or mixed manual-mechanical handling, up to 6 km/h. Excellent rolling resistance. Examples of recommended applications: trolleys for indoor industrial handling, trolleys for food and chemical industry. TECHNICAL FEATURES WHEEL TREAD: TR polyurethane tread; hardness 95 Shore A; excellent rolling resistance and elasticity, highly resistant to wear and to tearing CENTRE: polyamide 6 BRACKETS: NL, NL X, M, P, P X, ENVIRONMENTS OF USE Suitable for indoor environments, also in presence of medium-harsh chemical agents, alcohol, glycol and water. They are suitable for industrial environments. Not recommended in areas with strong organic acids and mineral acids. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors. Tile floor Tile floor - Asphalt floor Asphalt floor - Resin cement floor Resin cement floor - Not paved floor Not paved floor - Expanded metal floor Expanded metal floor - Floor with chips Floor with chips - Floor with obstacles Floor with obstacles FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring.
