Swivel caster 36 series
base platedoublethermoplastic

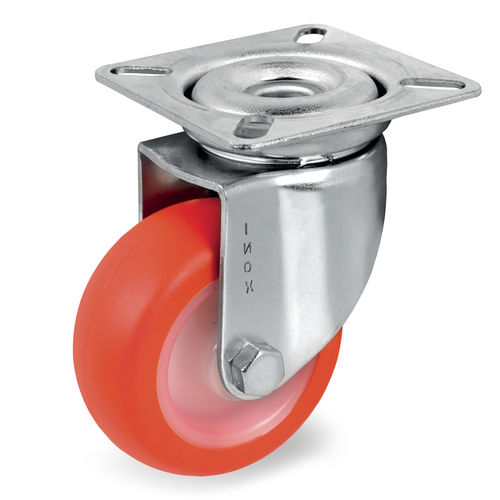

Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 2
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 3
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 4
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 5
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 6
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 7
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 8
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 9
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 10
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 11
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 12
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 13
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 14
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 15
Swivel caster - 36 series - Tellure Rôta - base plate / double / thermoplastic - image - 16
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
double, industrial, for public spaces, polyurethane, polyamide, stainless steel, thermoplastic
Load capacity

Max.: 143 kg
(315 lb)

Min.: 41 kg
(90 lb)

Wheel diameter

Max.: 60 mm
(2.362 in)

Min.: 40 mm
(1.575 in)

Description

Suitable for use on different types of trolleys within the institutional sector, particularly in catering. Good load carrying capacity in relation to small diameter wheels. Resist well to frequent washing, making them suitable in environments where hygiene must be guaranteed. TECHNICAL FEATURES LOAD CAPACITY: 40-140 daN WHEEL TREAD: thermoplastic polyurethane tread CENTRE: polyamide 6 BRACKETS: zinc-plated brackets ENVIRONMENTS OF USE Suitable for industrial environments, also in presence of water and saturated vapour, alcohol and glycol, mineral and organic acids. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable on tiles and resin-cement; not recommended on abrasive, unpaved floors or in the presence of processing residues. They do not damage fragile flooring and are also suitable in the presence of small obstacles.
