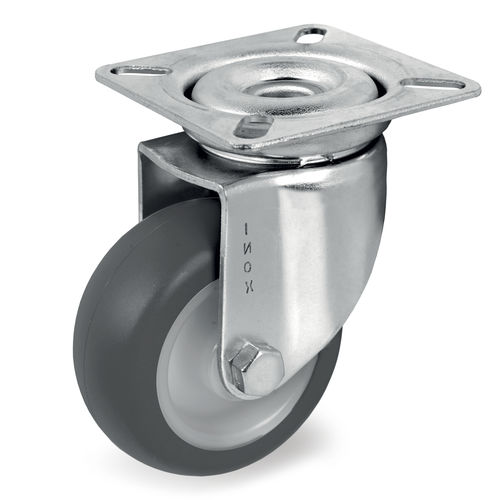

Swivel caster 38 series
base platenon-markingthermoplastic

swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
non-marking, furniture, rubber, polypropylene, stainless steel, thermoplastic
Load capacity

Max.: 71 kg
(157 lb)

Min.: 31 kg
(68 lb)

Wheel diameter

Max.: 80 mm
(3.15 in)

Min.: 40 mm
(1.575 in)

Description

Suitable for use on different types of trolleys within the furniture and institutional sector. They can also be used on fragile floors and in presence of small obstacles. Example of recommended applications: shop display units and windows, low carrying capacity tool trolleys, supermarket trolleys. TECHNICAL FEATURES WHEEL TREAD: grey non-marking thermoplastic rubber CENTRE: polypropylene BRACKETS: zinc-plated brackets USAGE CONDITIONS Suitable for humid environments, with medium-harsh chemicals; not suitable for applications where organic solvents, chlorinated substances, hydrocarbons and mineral oils are present.
