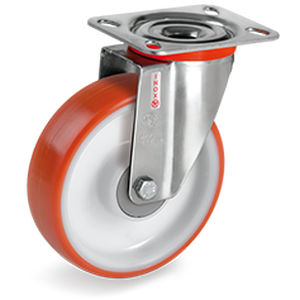

Medium load caster 60 CC series
swivelbase platefor trolleys

medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
non-marking, for medium loads, industrial, for trolleys, handling, polyurethane, polyamide, stainless steel, resin, polyurethane-coated
Load capacity

Max.: 750 kg
(1,653 lb)

Min.: 133 kg
(293 lb)

Wheel diameter

Max.: 250 mm
(9.843 in)

Min.: 80 mm
(3.15 in)

Description

Suitable for trolleys and machinery with medium-duty loads, also in case of continuous handling. Suitable for indoor and outdoor use with frequent washing and sterilisation. Examples of recommended applications: trolleys for industrial use, tubular trolleys, trolleys for food and chemical industry, mobile scaffoldings. TECHNICAL FEATURES WHEEL TREAD: injection polyurethane tread; hardness 55 Shore D; excellent rolling resistance and elasticity, good resistance to wear and to tearing CENTRE: polyamide 6 BRACKETS: NL, NL X, P, USAGE CONDITIONS Suitable for environments where atmospheric agents, alcohol, glycol, mineral and organic acids, base solutions and saturated vapour are present. FLOORS Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors. FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.

Catalogs

Catalog 2023
Catalog 2023
448 Pages
