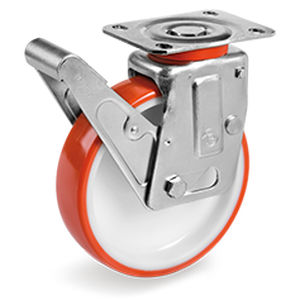

Swivel caster 60 series
base plateindustrialfor trolleys

swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
industrial, for trolleys, handling, polyurethane, polyamide, thermoplastic, resin
Load capacity

Max.: 459 kg
(1,012 lb)

Min.: 122 kg
(269 lb)

Wheel diameter

Max.: 200 mm
(7.874 in)

Min.: 80 mm
(3.15 in)

Description

Suitable for trolleys and machinery with medium-duty loads, also in case of continuous handling. Suitable for indoor and outdoor use with frequent washing and sterilisation. Examples of recommended applications: trolleys for industrial use, tubular trolleys, trolleys for food and chemical industry, mobile scaffoldings. TECHNICAL FEATURES WHEEL TREAD: thermoplastic polyurethane tread; hardness 55 Shore D; excellent rolling resistance and elasticity, good resistance to wear and to tearing CENTRE: polyamide 6 BRACKETS: ENVIRONMENTS OF USE Suitable for industrial environments, also in presence of water and saturated vapour, alcohol and glycol, mineral and organic acids. FLOORS Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors.

Catalogs

Catalog 2023
Catalog 2023
448 Pages
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
