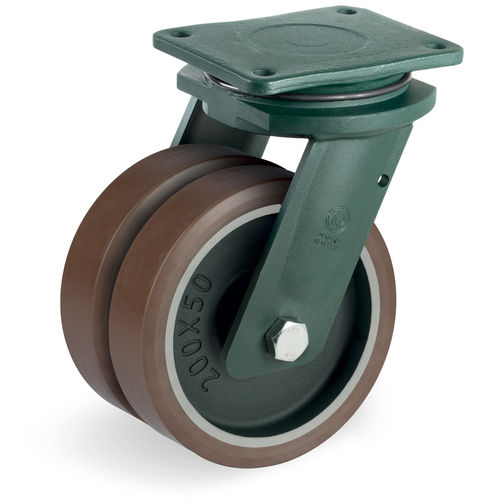

Swivel caster 58GH series

base platefor trolleysindustrial

TR- PowerHigh is the most suitable solution in case of applications with very high loads, speed of use above 12-16 km/h, intensive use, even in environments requiring resistance to hydrolysis. The excellent rolling resistance allows to easily handle high loads even with small diameter wheels. The plain bore version, with key way or spline, is suitable for use as a drive wheel. Examples of recommended applications: AGVs, AMRs and robotic solutions, automation, electric pallet trucks and forklifts, amusement park equipments, elevators, towed trolleys for industrial use. TECHNICAL FEATURES LOAD CAPACITY: 350-3800 daN WHEEL TREAD: “TR- PowerHigh” polyurethane for high dynamic performance, hardness 92 Shore A, excellent rolling resistance and elasticity, very good resistance to wear and to tear, good resistance to hydrolisis. CENTRE: cast iron BRACKETS: USAGE CONDITIONS Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
