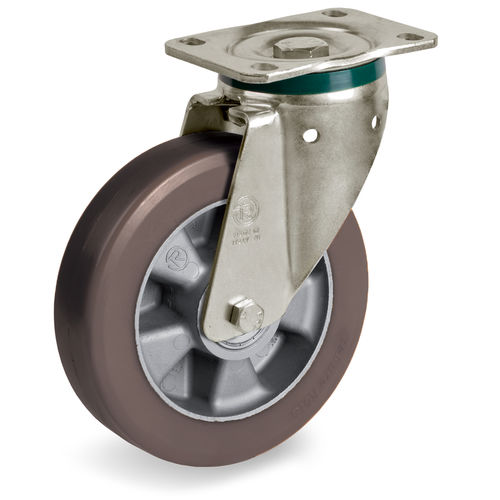

Swivel caster 58 HT seriesbase platefor trolleysindustrial
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- industrial, for trolleys
- Load capacity
Max.: 800 kg
(1,764 lb)Min.: 350 kg
(772 lb)- Wheel diameter
Max.: 200 mm
(7.874 in)Min.: 100 mm
(3.937 in)
Description
The excellent rolling resistance allows easy manual handling of even very high loads; they are suitable for use also for towed applications with speeds up to 8 km / h; for these reasons, they are perfect in case of use with mixed manual-mechanical handling. Examples of recommended applications: trolleys for internal handling in the logistics and automotive industries, electric pallet trucks.
TECHNICAL FEATURES
LOAD CAPACITY: 250-850 daN
WHEEL TREAD: “TR- PowerHigh” polyurethane for high dynamic performance, hardness 92 Shore A, excellent rolling resistance and elasticity, very good resistance to wear and to tear, good resistance to hydrolisis.
CENTRE: aluminium
BRACKETS:
USAGE CONDITIONS
Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present.
