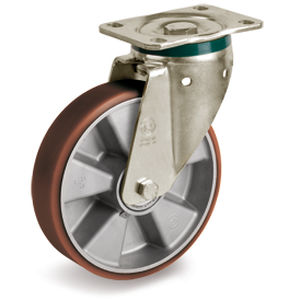

Swivel caster 58 AL series
base platefor trolleyshandling

swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
industrial, for trolleys, handling, polyurethane
Load capacity

Max.: 850 kg
(1,874 lb)

Min.: 150 kg
(331 lb)

Wheel diameter

Max.: 200 mm
(7.874 in)

Min.: 100 mm
(3.937 in)

Description

The excellent rolling resistance allows easy manual handling of even very high loads; they are suitable for use also for towed applications with speeds up to 8 km / h; for these reasons, they are perfect in case of use with mixed manual-mechanical handling. Examples of recommended applications: trolleys for internal handling in the logistics and automotive industries, electric pallet trucks. TECHNICAL FEATURES LOAD CAPACITY: 250-850 daN WHEEL TREAD: “TR- PowerHigh” polyurethane for high dynamic performance, hardness 92 Shore A, excellent rolling resistance and elasticity, very good resistance to wear and to tear, good resistance to hydrolisis. CENTRE: aluminium BRACKETS: USAGE CONDITIONS Suitable for environment with atmospheric agents, alcohol and glycol; not suitable for applications where mineral and organic acids, base solutions and saturated vapour are present. FLOORS Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors. Force required to push or tow a wheel For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.
