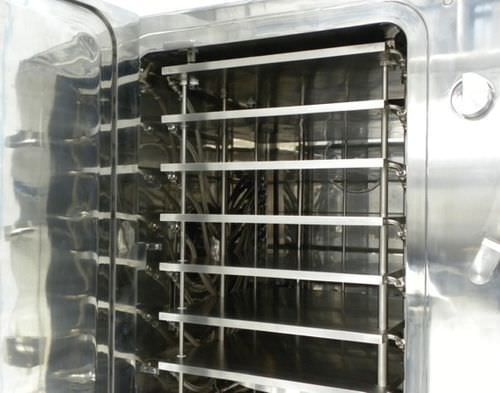

Process freeze dryer Lyotris

Telstar Lyotris is a cGMP unit suited to clinical and small production scale batches of high-value pharmaceutical products under aseptic conditions. The unit is suitable for the freeze drying of high potency products that require containment in addition to those for biological, biotechnology and biopharmaceutical applications. The Lyotris is scaled to enable its use for the development of new products, clinical trials and small production batches. The product contact surfaces are mechanically polished to Ra ≤ 0.51 μm with the longitudinal edges rounded to facilitate cleaning. Piping joints are orbital or TIG welded and with in-line sanitary fittings sealed with pharmaceutical grade gaskets. All process pipes are constructed in stainless steel AISI 316L and keep slopes towards the drainage. Dead legs are minimised to avoid fluids stagnation.
