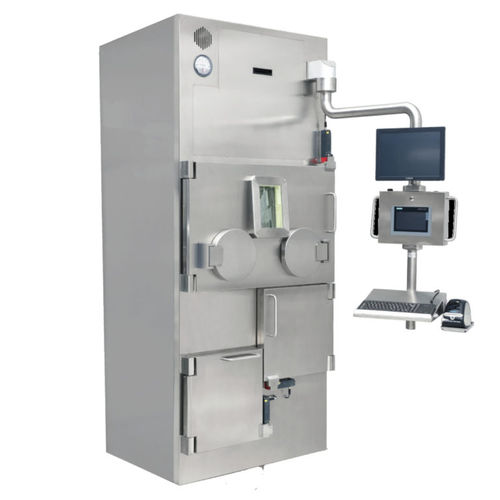

Synthesis hot cell Gallia 50

negative pressureshielded

Hot Cell For 68-Gallium GALLIA 50 hot cell is specifically designed to accomplish the latest GMP guidelines for the complete 68Ga preparation cycle: • Generator elution • Synthesis or cold kit processing • Dispensing • Waste management KEY FEATURES • Generator area for max n. 3 68Ga generators (n. 2 if the optional Waste Chamber is required) • HMI: operator software interface for handling, system control, data saving and display • Laminar air flow and temperature check sensor • Particle counter connection predisposition • Dose calibrator shielded area • Main double door: Shielded Door for radioprotection and Polycarbonate Door for air-tight and gloves mounting. The 2 doors are independent and open separately • Multi diameter sealed pass-through system for cables (Roxtec) • N. 1 GMP Class B pre-chamber for the introduction and extraction of cold kits, cassettes and syringes • Arm-tray to support laptop, and/or dose calibrator control unit and/or MorGaNA/ µDDS-A laptop, and printer OPTION • Shielded and ventilated waste chamber, with door opening on the front • Dose calibrator up/down automatic lift • MorGaNA cold kit processing system or µDDS-A automatic dispenser • Tray for synthesis module • Lead pot container • Humidity sensor • VHP connection predisposition • Radiation monitor of the hot cell exhaust ventilation duct • GM tube connection to the ENVIRO area monitoring net • External PC for audit trail and alarm log file, saving into uncorruptible files ACTIVE SAFETY • Software control for cell parameters (negative pressure, filter clogging, ventilation status, UV light timer, etc.) • N. 1 manometer for continuous pressure status visualization
