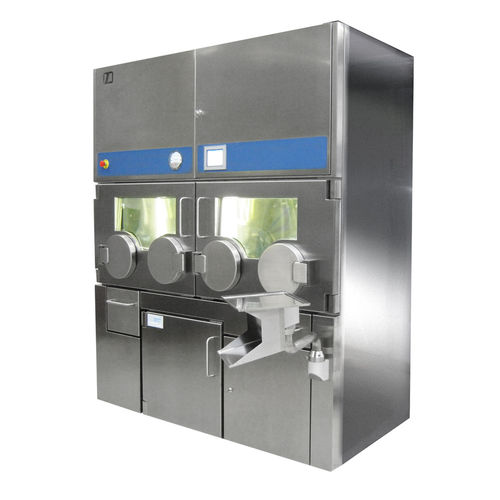

Nuclear medicine hot cell TEC4

shieldedventedvertical laminar flow

Nuclear medicine manipulation cell TEC4 is a shielded hot cell with vertical laminar flow over the whole working area. Thanks to its 2 independent workstations it allows two operatores to work simultaneously. TEC4 can be implemented with a motorized lift for the whole hot cell to be moved to the desired height. KEY FEATURES • n.1 GMP Grade A working area – more than 1 square meter • n.2 independent workstations (n. 2 operators) • n.1 air-tight, shielded and vented pre-chamber for TC99 generator housing • extractable carousel for up to n.4 TC99 generators, with lifting system for the chosen generator • n. 1 air-tight, shielded and vented frontal pre-chambers (double door drawer) • in-house dose calibrator shielded area • front shielded door with lead glass window • shielded housing for waste bin • air-tight polycarbonate inner doors with gloves for maintenance and cleaning • motorized lift for TEC4 height adjustment (optional)
