Mesh tape C Series

groundingshieldingaluminum

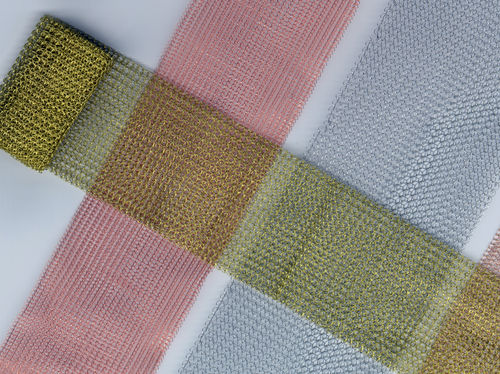

Mesh tapes are mostly designed for shielding and grounding for electrical and electronic cable assemblies. This product is realized with many different combination of knitting options, wire materials and sizes. Mesh is manufactured as a tubular part and then flattened into the final width. Sizes available in a wide range from 5mm of width to 150mm as a standard. Many materials available such as monel, tinned copper clad steel, stainless steel, beryllium copper, tinned copper and aluminium. - FLEXIBLE STRUCTURE TO CONFORM TO IRREGULAR SURFACES AND SHAPES DURING THE WRAPPING PROCESS (50% overlap bandage) - TIN PLATING TO ALLOW SOLDERABILITY - USEFUL EVEN FOR ELECTROSTATIC DISCHARGE (ESD) - TINNED COPPER CLAD STEEL AS A STANDARD MATERIAL (best performance) - SEVERAL OTHER ALLOYS AND WIRE DIAMETERS AVAILABLE - SINGLE OR DOUBLE KNIT VERSION - RANGE OF WIRES: MONEL (MO) TINNED COPPER CLAD STEEL (TC) STAINLESS STEEL (SL) BERYLLIUM COPPER (BC) TINNED BERYLLIUM COPPER (BT) RED COPPER (CO) TINNED COPPER (TR) ALUMINIUM (AL)
