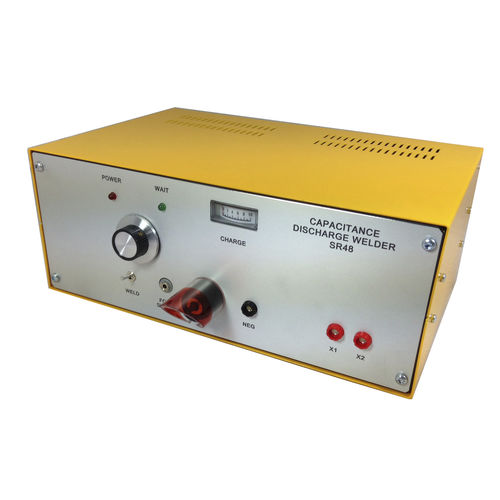

Capacitor discharge welder SR-48ACthermocouple
Add to favorites
Compare this product
Characteristics
- Technique
- capacitor discharge
- Output current
- AC
- Other characteristics
- thermocouple
Description
Combining many features of the SR80 and SR50 welders, the SR48 offers a low cost unit for capacitance discharge welding.
Designed for the fast production of thermocouple junctions and other fine wire welds, it has an output of 48 joules over two power ranges allowing for two wires of up to 1.1mm dia each to be welded.
An optional pen and plate is available to facilitate with specialised impact welding applications as well as an optional footswitch.
General Specifications:
Energy output: 0 to 48 joules via selectable outputs.
Weld capacity: Up to 2 x 1.1mm dia.
Power supply: 220/240Vac or 100/120Vac to order.
Weight: 4Kg.
Dimensions: 310 x 230 x 120mm.
Indicators and Controls:
LED indication: Mains on.
Meter: Percent of max charge
Weld switch: Activates weld
Potentiometer: Sets energy level.
