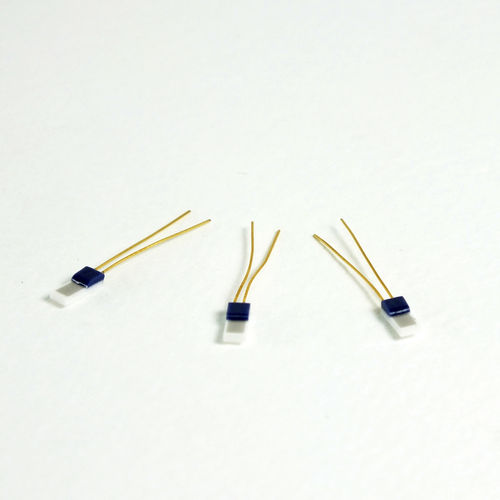

Thin-film temperature sensor EF series

platinum resistiveflat

SPECIFICATION Recommended Operating Temperature: -40 to +400°C Class: 1/3 DIN, A and B Measuring Current: Max 2mA Material of leads: Gold plated Nickel. Tolerances in accordance with JIS C 1604 and IEC751. Temperature Coefficient Resistance: R100/R0 = 1.3851. The surface of Platinum thin film is coated with ceramic, so the element can withstand high voltage and show high insulation resistance. All elements are supplied after inspecting and printing the actual resistance value at 0 deg. C. Elements are made exclusively of ceramic and Platinum giving excellent stability even at high temperature. The Platinum thin film is sputtered on the ceramic surface giving outstanding resistance to vibration and shock
