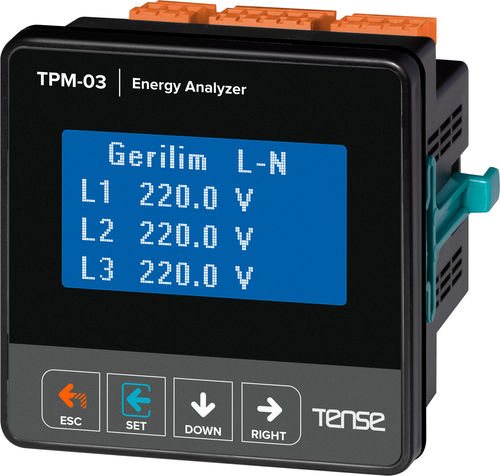

Electrical network analyzer TPM-03

AC energy networkpower qualitypower

Energy analyzers are designed to measure and monitor electrical values. With the communication feature, energy measurements can be monitored and reported independently. With energy analyzers, analyzes such as energy quality, efficiency and unit cost calculation can be performed. • - Easy Installation and Operation with 128x64 Graphic LCD Display • - With 3-Phase Voltage and 3-Phase Current Transformers • - Easy-To-Use Turkish Menu • - It Shows Voltage and Current Harmonics Up To 63rd Harmonics • - Remote Communication with RS485 (RS485 ModBus RTU) • - It Shows Per-Phase and Total Active Powers (P, ΣP) • - It Shows Per-Phase and Total Reactive Powers (Q, ΣQ Inductive and Capacitive) • - It Shows Per-Phase and Total Apparent Powers (S, ΣS) • - It Shows Cosφ and Power Factor Values of Each Phase • - It Shows Voltage (V) and Current (I) Values of Each Phase • - It Shows Total Import and Export Active Energy (ΣkWh) Values • - It Shows Total Inductive and Capacitive Reactive Energy (ΣkVArh) Values • - It Shows the Minimum and Maximum Values • - It Shows Demand Values • - You Can Reset the Energy Values • - Real Date and Time • - Date and Time can be Adjusted • - Password Protected Menu • - 2 Relay Outputs, 1 Pulse Output (Adjustable) • - Event Records (High/Low Voltage/Current, Energy Interruption, Voltage Imbalance etc.)
