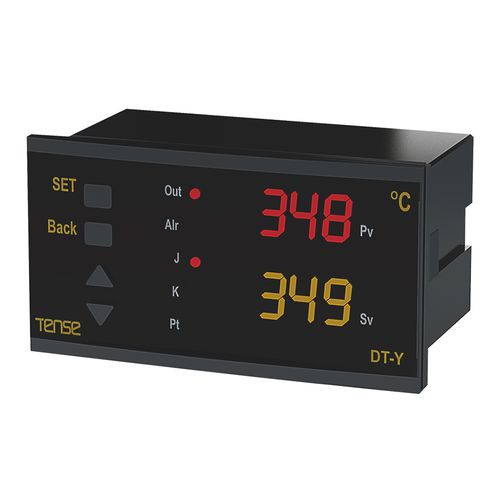

Digital temperature controller DT-Y

PIDcoolingheating

Digital temperature control relays are designed to keep the temperature of the environments requiring temperature dependent control at the set value. Microprocessor Based, PID Temperature Controller Auto-tuning for PID Parameters Sensor Type: T/C (J,K,T,S,R), Pt100 Selectable Control Type: P, PI, PD, PID or ON-OFF Automatic “Overshoot” Elimination in PID Mode Anti-windup Upper and Lower Limit for SET and ALARM Settings Selectable Relative, Absolute or Band Alarm ON-delay for OUT in Cooling Mode Displays SET and PROCESS Values Cold-junction Compensation for T/C Line Compensation for Pt100 Excellent Linearity with °C/mV and °C/W Look-up Tables Input “Offset” Feature Password Protection High Accuracy EEPROM Memory to Store Settings Optional SSR Output Easy Connection with Plug-in Connectors
