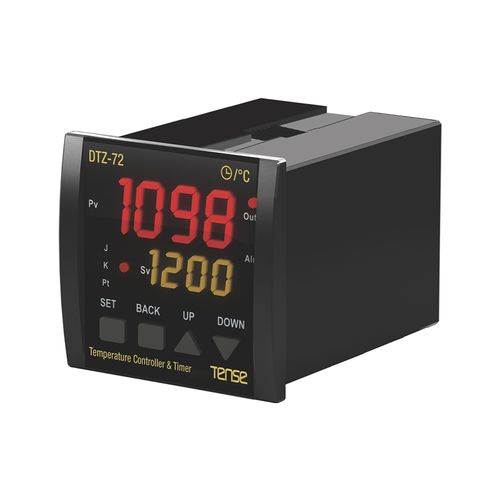

Digital temperature controller DTZ-72

PIDcoolingheating

Digital temperature control relays are designed to keep the temperature of the environments requiring temperature dependent control at the set value. Microprocessor Based, PID Temperature Controller with Built in Timer Auto-tuning for PID Parameters Sensor Type: T/C (J,K,T,S,R), Pt100 Selectable Control Type: P, PI, PD, PID or ON-OFF Automatic “Overshoot” Elimination in PID Mode Upper and Lower Limit for SET Value Cold-junction Compensation for T/C Line Compensation for Pt100 Excellent Linearity with °C/mV and °C/W Look-up Tables Input “Offset” Feature Ability to Set up to 99:59 Hours Adjustable ALARM ON Time up to 99:59 Hours Selectable Auto OFF after Timer T.SET Time for OUT output Possibility to monitor SET and Remaining Time Values ​​Intermittently Password Protection High Accuracy EEPROM Memory to Store Settings Optional SSR Output Easy Connection with Plug-in Connectors
