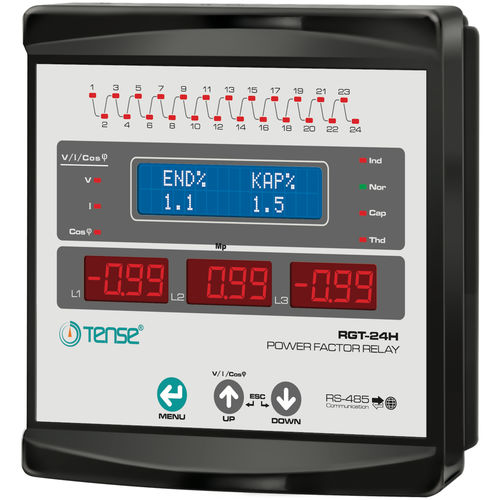

Reactive power controller with built-in communication RGT-24H

three-phase24 levels

24 Level, Graphic LCD Screen, Three-Phase Power Factor Controller with Communication Reactive power control relays are designed for the purpose of reducing the reactive powers (inductive and capacitive) not used by the loads and drawn from the network. If inductive power is drawn from the network, it intervenes by drawing capacitor in the suitable value. If the capacitive power is drawn from the network, it intervenes by drawing shunt reactor in suitable value. It tries to reduce the inductive/active and capacitive/active rates of the system this way. Features - Easy Installation and Operation with 2x16 LCD Display - 3x4 Digit Led Display, Information and Warning LED Display - Intervention, Discharge and Settling Times can be Adjustable - Remote Communication with RS485 (Computer Communication) - Manual Step Value Enterable - Single, Two, and Three Phase Capacitor and Shunt Reactor can be Connected - Cosine Values of Each Phase can be Observed - Capacitive/Active and Inductive/Active Ratios can be Observed - Total Energies (Import/Export) can be Observed - THD-I value can be Observed - Creating Power Analysis (20 samples 9999 min.) - Current and Voltage Values of Each Phase can be Observed - Password Protected Menu - Same Aging in Steps
