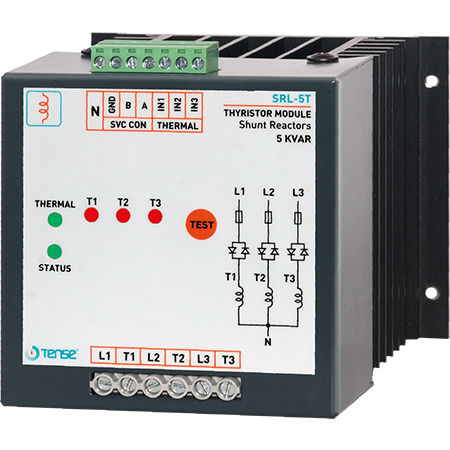

Inductive load compensator SRL 5T

SVC

TENSE Inductive Load Drives can be used with the new generation SVC-enabled TENSE reactive power control relays. The inductive load drive, which is connected to the reactive power control relay, is designed to drive 3 single-phase shunt reactors. In this way, the shunt reactors are triggered at the required ratio of each phase and commissioned as necessary and provide full intervention. • - 30kVAr Shunt Reactor Drive Capacity (1,66kVAr per phase) • - Separate Thermal Input for Each Shunt Reactor • - Driveability from 0% to 100% • - Intervention Without Delay • - The System With the Test Button • - Thermal and Status LEDs • - Separate Drive Notification LED for T1, T2 and T3
