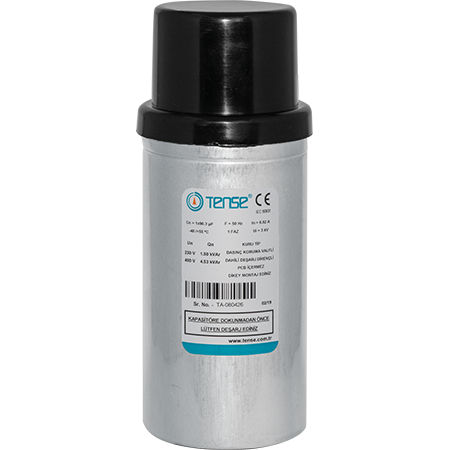

Power factor correction capacitor TMK-0.25

aluminummetalized polypropylene filmcylindrical

LV Power Capacitors are designed for power factor correction in low voltage systems. Capacitors have a cylindrical aluminum casing. The explosion of the capacitors is prevented by the overpressure sensitive circuit breaker system. • - Power : 0,25 kVAr (Single-Phase) • - Dimensions : 50x135mm. • - Standards : IEC 60831-1/2 • - Rated Voltage : 230V AC • - Over Voltage : Un + 10%, 8 hours in every 24 hours • - Over Current : 1,5 x In • - Casing : Cylindrical aluminum can • - Life Expectancy in Normal Condition : >130.000 hours (ambient temperature up to + 55°C) • - Çevre Sıcaklığı : - 40°C - +55°C • - Cooling : Natural air cooled. Casing temperature maximum 60°C permitted on top of the can. • - Dielectric System : Metallised Polypropylene Film, Self Healing property. • - Safety Features : Over pressure sensitive 3 phase disconnector. • - Mounting Position : Vertical.
