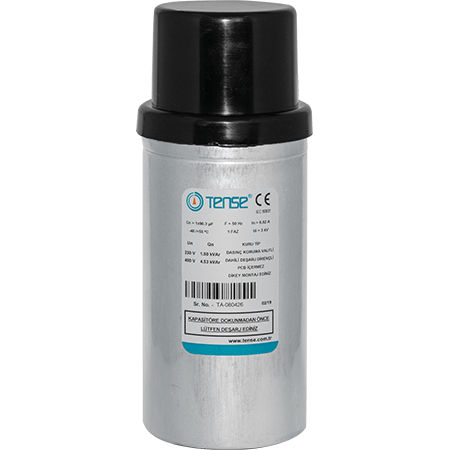

Low-voltage capacitor TMK-1.5 (230V)

metalized polypropylene filmcylindricalself-healing

1,5kVAr Single-Phase Low Voltage Power Capacitor Features LV Power Capacitors are designed for power factor correction in low voltage systems. Capacitors have a cylindrical aluminum casing. The explosion of the capacitors is prevented by the overpressure sensitive circuit breaker system. - Power : 1,5 kVAr (Single-Phase) - Dimensions : 65x130mm. - Standards : IEC 60831-1/2 - Over Voltage : Un + 10%, 8 hours in every 24 hours - Over Current : 1,5 x In - Casing : Cylindrical aluminum can. - Life Expectancy in Normal Condition : >130.000 hours (ambient temperature up to + 55°C) - Çevre Sıcaklığı : – 40°C – +55°C - Cooling : Natural air cooled. Casing temperature maximum 60°C permitted on top of the can. - Dielectric System : Metallised Polypropylene Film, Self Healing property. - Safety Features : Over pressure sensitive 3 phase disconnector. - Mounting Position : Vertical.
