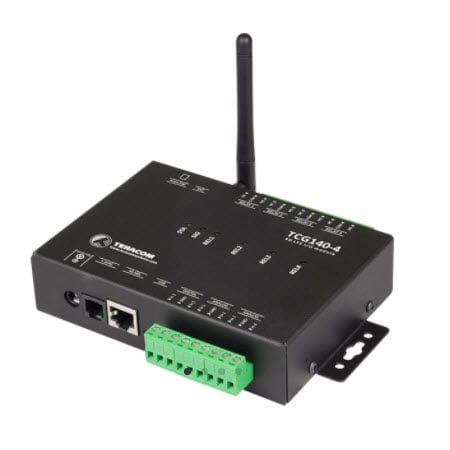

Digital I O module TCG140-4

analogUSBModbus RTU

TCG140-4 is a 4G LTE universal IO module for remote monitoring and control over cellular networks. TCG140-4 is a 4G LTE universal IO module. It covers LTE Cat.1 communication with up to 5 Mbit upload. The device supports also 3G and 2G wireless communication and provides data connectivity on LTE-FDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA, EDGE, and GPRS networks. This makes it usable practically anywhere in the world where is available some kind of cellular coverage. 4G LTE universal IO module can work autonomously but it is specially optimized for M2M and IoT applications. The main option for M2M communication is HTTP API. The device supports HTTP and HTTPS Post with XML or JSON file. The module offers a large number of analog inputs with 0 to 10 volts and a current loop – 0 to 20mA inputs. In addition, the device supports the MODBUS RTU interface for all compatible industrial devices, including all Teracom sensors. Multi-band connectivity; Setup via USB, SMS or HTTP(S) API; 2 digital ”dry contact” inputs; Up to 8 Teracom 1-Wire sensors support; Up to 8 MODBUS RTU sensors/devices support; 4 relay outputs with NO and NC contacts; Up to 4 analog inputs with 0 to 10VDC range; Up to 2 current loop (0-20mA) inputs; HTTP(S) API commands; Periodical HTTP/HTTPS Post with current status in XML or JSON; Data logger for up to 70000 records; Periodical HTTP/HTTPS Post with logger data in CSV format; SMS alarm alerts (up to 5 numbers); Email alarm alerts (up to 5 email recipients), SMTP with TLS support; DIN-rail mount ready; Firmware update over USB or Internet.
