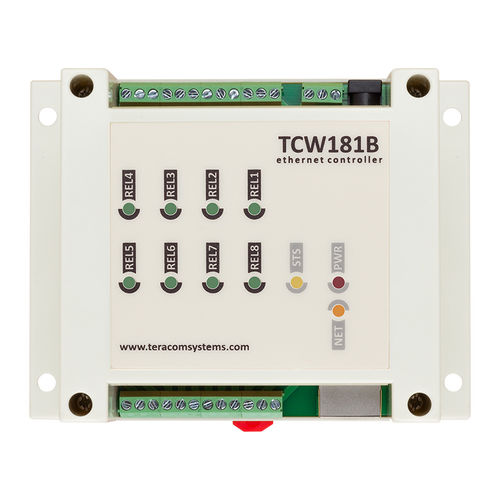

Remote I O module TCW181B-CM

digitalEthernet8-channel

TCW181B-CM is an Ethernet digital IO module for monitoring of one and control up to eight devices per unit. TCW181B-CM is 8-channel Ethernet digital IO module. The device is manageable by WEB interface, SNMP programs or user application over HTTP/XML API commands. It can be used as a stand-alone device or as a part of control and monitoring systems. The IO module TCW181B-CM has eight relays with normally open and normally closed contacts for up to 3 Amperes either AC or DC current. All eight relays of the device can be activated independently or simultaneously. Supported M2M protocol – SNMP v.1 makes the TCW181B-CM good choice for controlling systems with SNMP manager software. Password protected web based configuration and control; 1 digital input with “dry contact” and “logic level” modes; 8 relay outputs with NO and NC contacts; SNMP v.1 support; SNMP traps sending for alert conditions; E-mail sending for alert conditions; SMTP with authentication (SSL/TLS is not supported); XML and HTTP API commands; Remote firmware update; Rugged DIN-Rail/wall-mountable enclosure.
