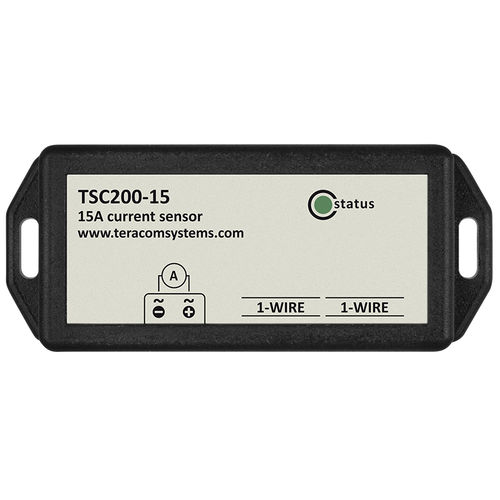

Digital current sensor TSC200-15

DCACpower

TSC200 is a 1-Wire current sensor with 0.3 to 15A working range and IP30 protection. TSC200-15 is a galvanic isolated 1-Wire current sensor. The sensor provides a low-cost option for AC or DC current monitoring. The 1-Wire sensor is based on fully integrated Hall-effect current sensor IC. It provides high accuracy and galvanic isolation. Embedded signal processing guarantees calibrated digital output. The sensor can be used for power monitoring applications – current and power measurements for building’s management systems (BMS), monitoring and control of batteries, solar systems, etc. Each sensor has a unique 64-bit serial code, which allows a few sensors to be connected on the same 1-Wire bus. TSC200-15 has two RJ11 connectors, for easy daisy chain wiring. Excellent accuracy; 10-bit resolution measurements; AC or DC measurement with 0.3 to 15A working range; On board, easy AC-DC mode change by a jumper; Galvanic isolation between the current circuit and 1-Wire bus; IP30 ingress protection; Excellent long-term stability; A unique 64-Bit serial number for multi-sensors support on 1-Wire bus.
